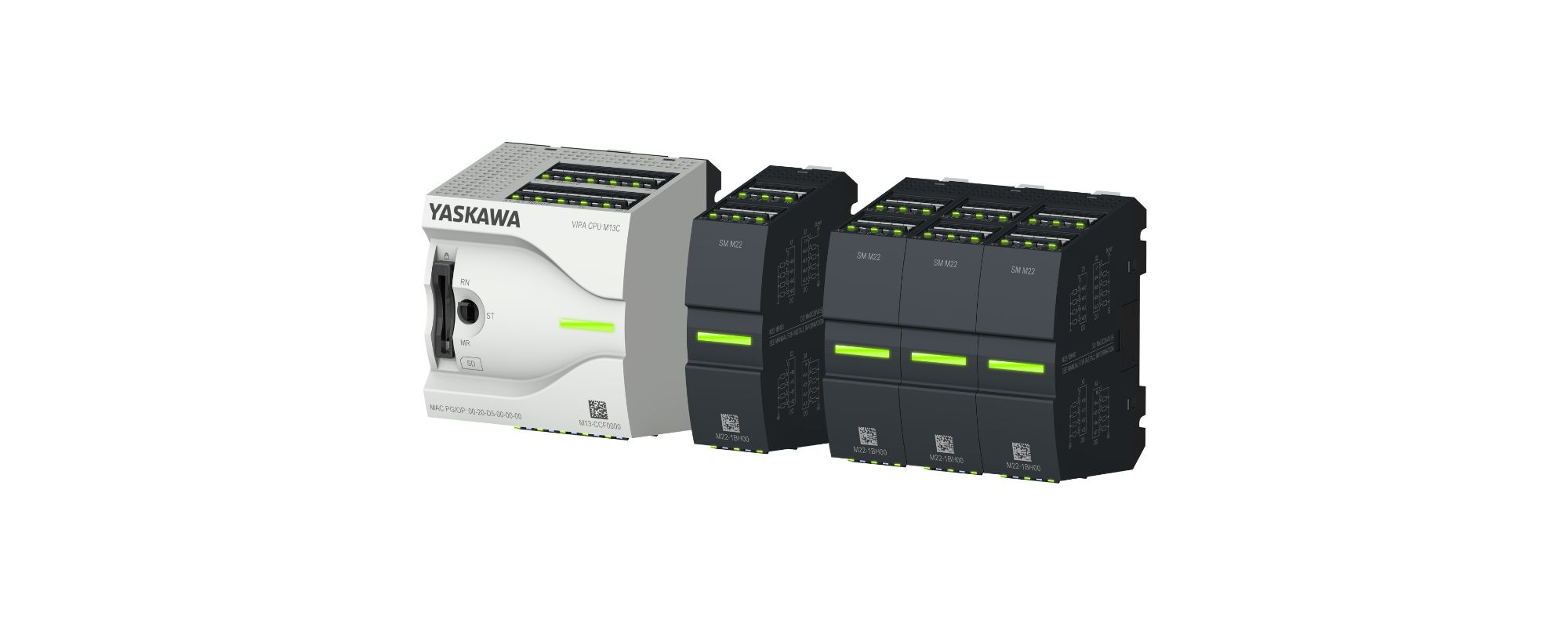

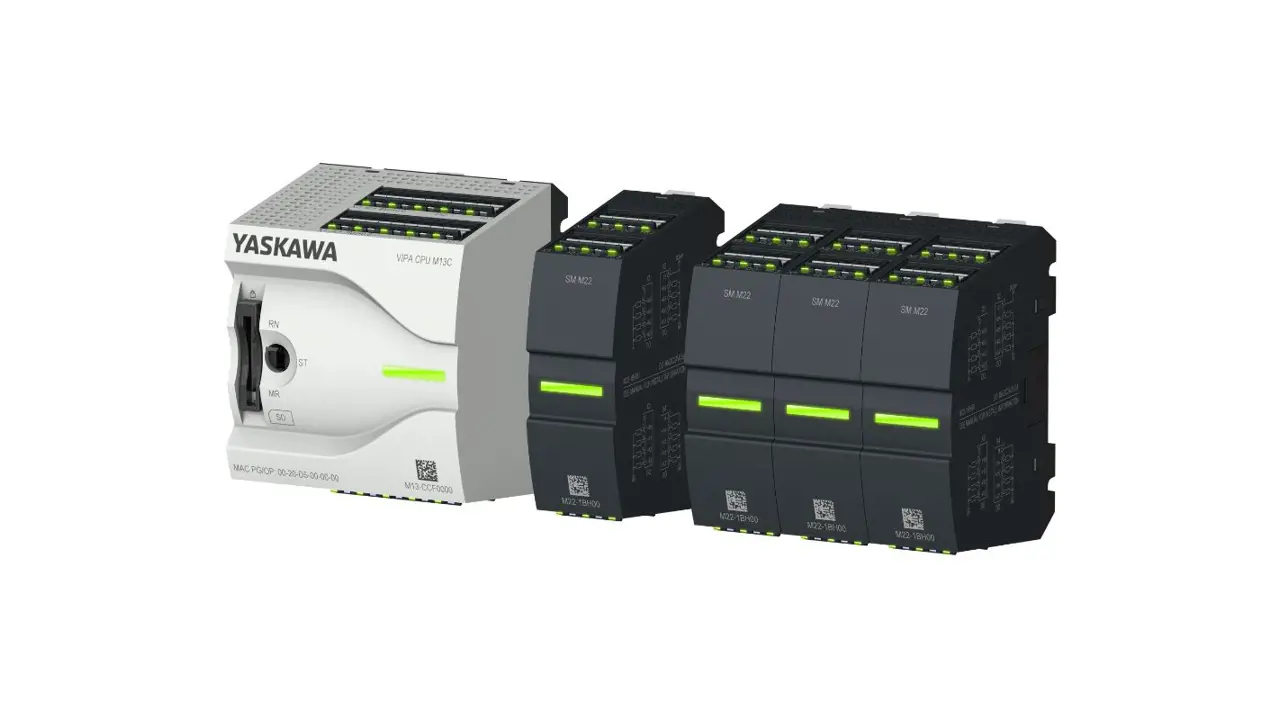

YASKAWA MICRO PLC

Compact and fast

Combining high functionality and excellent performance in a very small size offers new opportunities to optimize processes and increase performance - even in the smallest equipment and machines.

Setup and programming of the MICRO PLC is done using SPEED7 Studio, Siemens SIMATIC Manager or Siemens TIA Portal. This ensures that existing S7 know-how can continue to be used for programming.

As a PROFINET controller, MICRO can be expanded with up to eight PROFINET devices. For example, the SLIO I/O system is available as a PROFINET device. The PROFINET I-Device function allows MICRO to be connected to a PROFINET master.

MICRO PLC provides maximum performance in the smallest space in the control cabinet. Its minimal size allows completely new planning designs for different user applications.

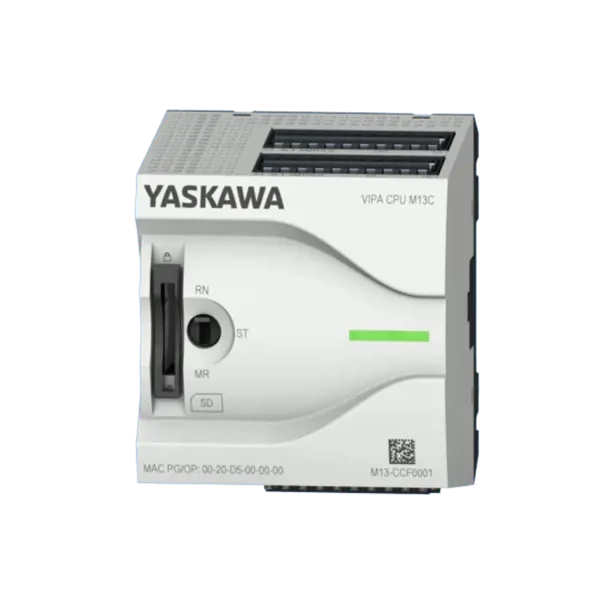

Facts about Micro PLC

PROFINET IO-Controller and I-Device
Integrated web server for device diagnostics and web visualization
Ethernet PG/OP channel for active and passive communication
16 digital inputs, DC 24 V with integrated status display
12 digital outputs, DC 24 V 0.5 A with integrated status display
2 configurable analog inputs: voltage 0-10 V or current 4-20 mA
4 channels for counters, frequency measurement and 2 channels for pulse width modulation
128 Kb integrated memory
I/O address range, digital/analog 2048 bytes
512 hours/meter, 8192 bit memory bytes
Low output power, max 7 W
External memory option with SD card (up to 2 GB)
Programmable via SPEED7 Studio, Siemens SIMATIC Manager or Siemens TIA Portal

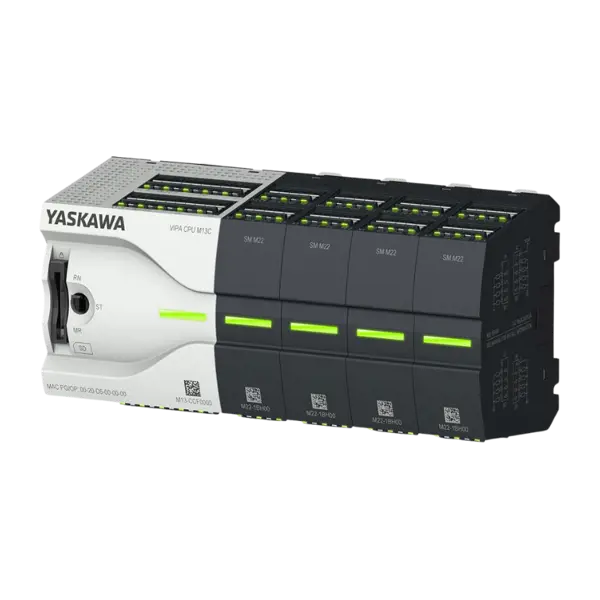

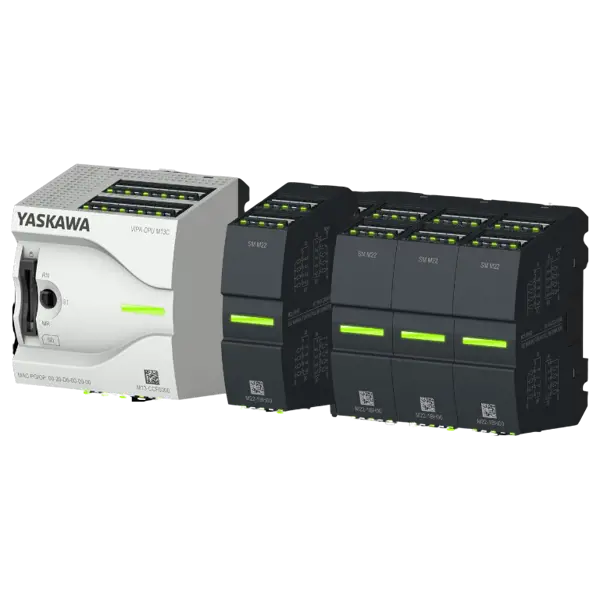

Extensions

2x RS485 expansion module

2 x serial interfaces (RS485/RS422, MPI, Modbus)
PROFIBUS-DP Slave can be activated with VIPA Set Card up to 8 peripheral modules
Digital input module
Digital output module
Digital input/output module
Analog input module
Analog output module
