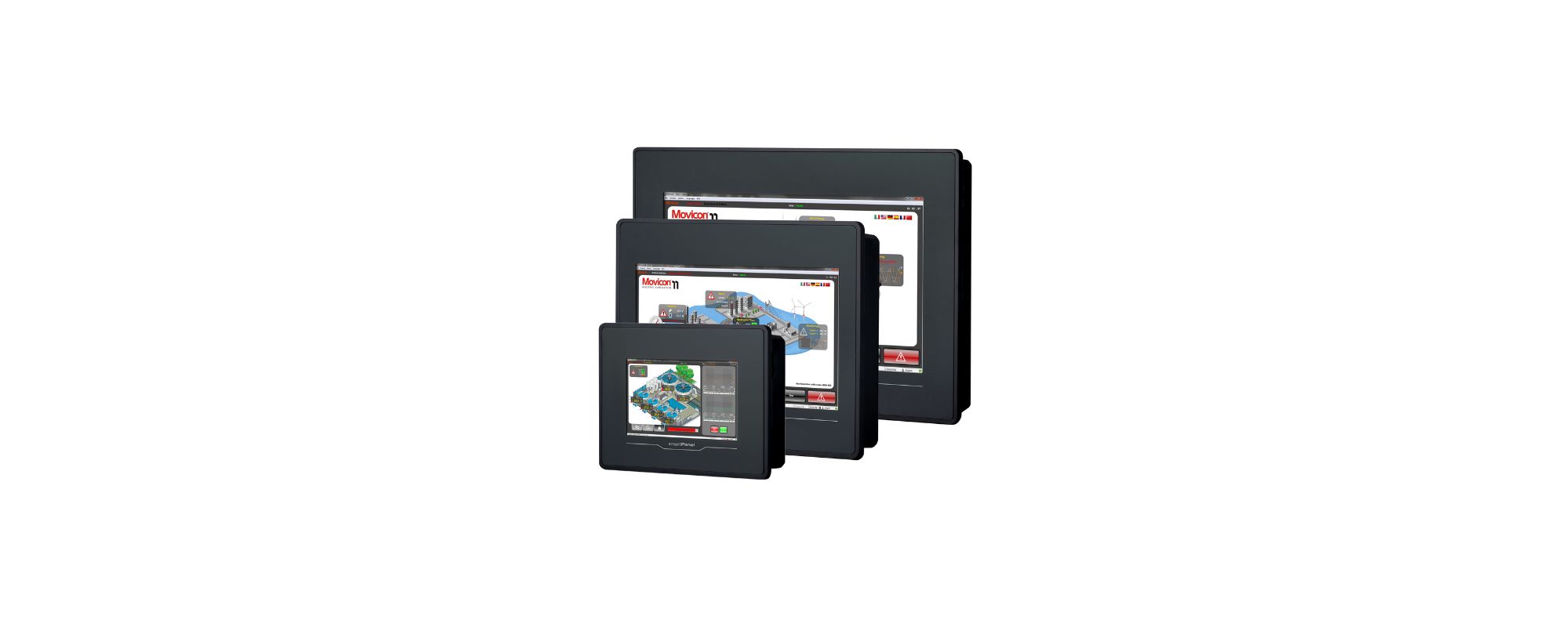

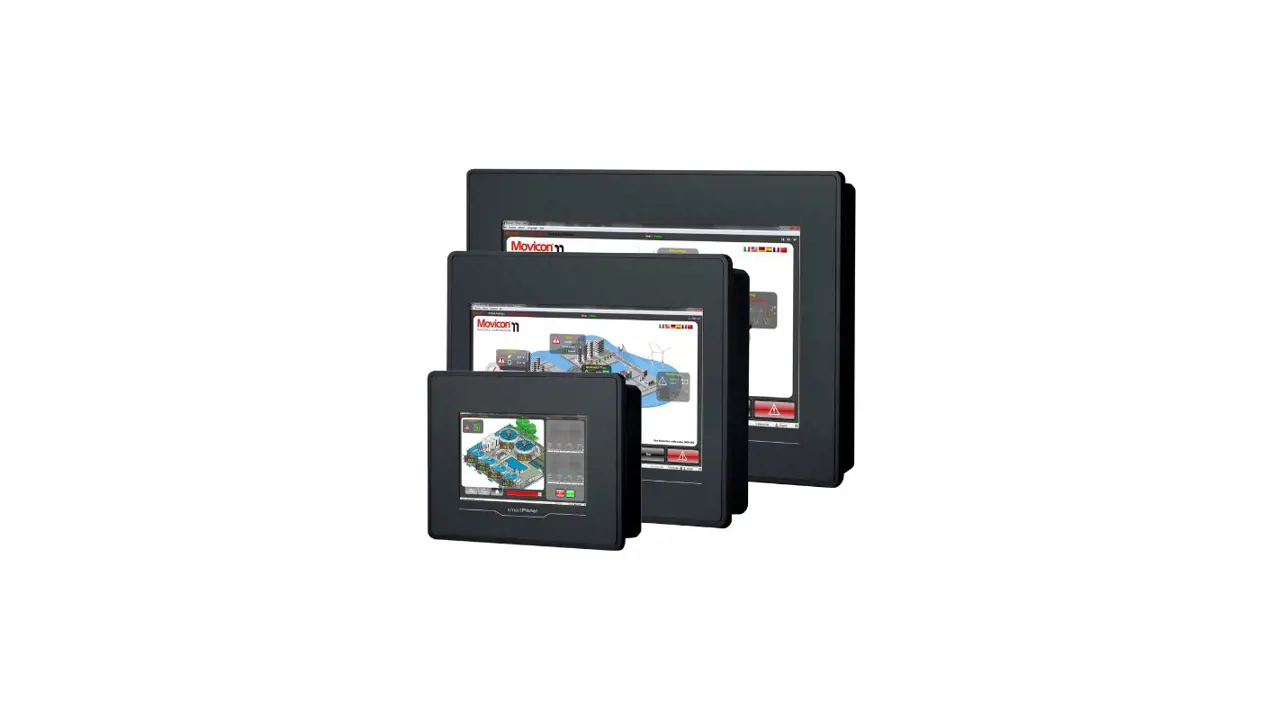

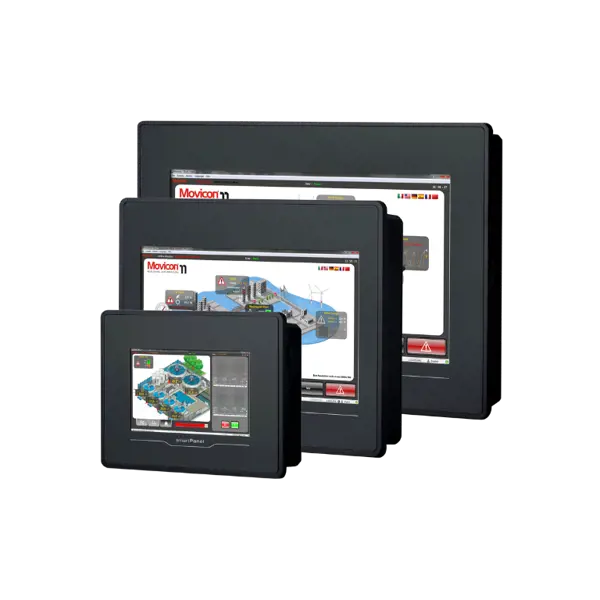

smartPanels

smartPanels are optimally designed for medium-sized applications and are characterized by high user-friendliness.

Equipped with Movicon 11 Standard, the user is virtually unlimited in terms of tags, screens, setup, alarms, etc.

Screen size: 4.3", 7" and 10"
65k colors
Processor: ARM Cortex-A8 1000 MHz
Interfaces: USB-A, Ethernet, RS232/422/485
Memory: 512 MB RAM, 4 GB Flash (2 GB user memory)

See all products here

Professional Panels

YASKAWA touch panels are suitable for all applications in factory, process and building automation. Thanks to the die-cast aluminum housing, YASKAWA touch panels are particularly mechanically robust.

With an IP65 protection class on the front, these devices can also handle demanding industrial environments.

The selection ranges from 5.7" TFT up to 12.1" TFT color monitors.

The compact design makes it possible to use YASKAWA touch panels in limited space.

The panels can be operated either horizontally or vertically.

See all products here

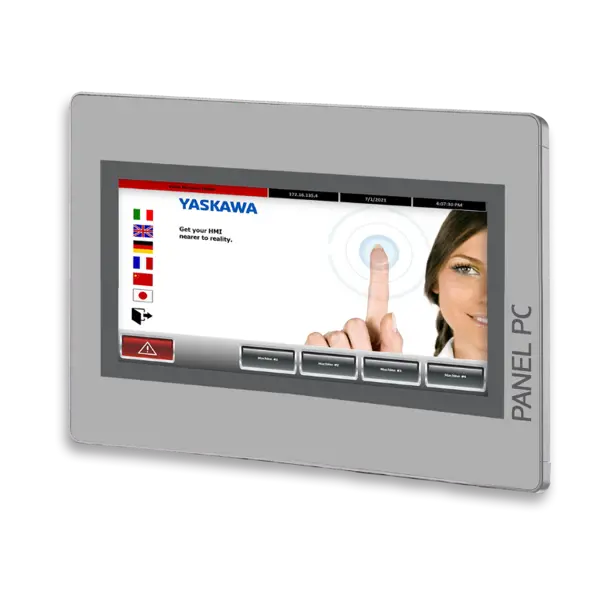

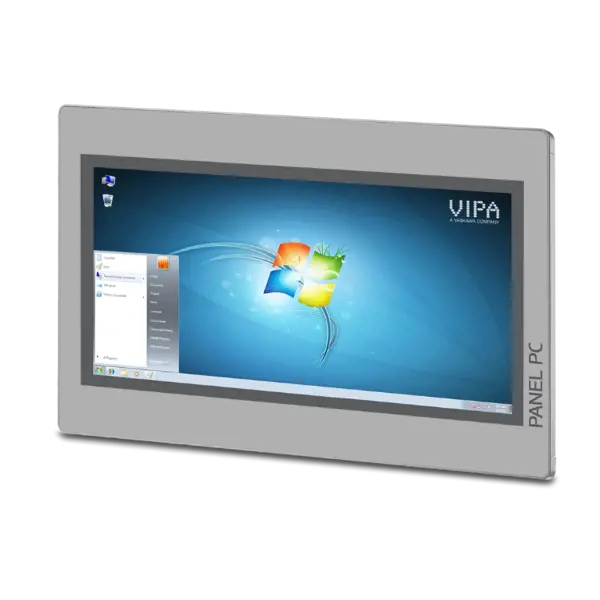

Panel PC

The combination of an industrial PC with advanced performance features and a touch panel with ideal display characteristics allows the user to concentrate high performance in the smallest possible space.

The high-end PC features the latest Intel Atom processor technology, large built-in RAM and a screen resolution of up to Full HD with the 21.5" panel.

The panels have a wide range of useful interfaces just like other YASKAWA touch panels.

Installed operating systems - Windows Embedded Compact 7, Windows Embedded Standard 7 or Windows 10 IoT Enterprise - are the most advanced in the PC world.

For visualization, your own applications or optionally the latest pre-installed Movicon visualization can be selected.

See all products here
