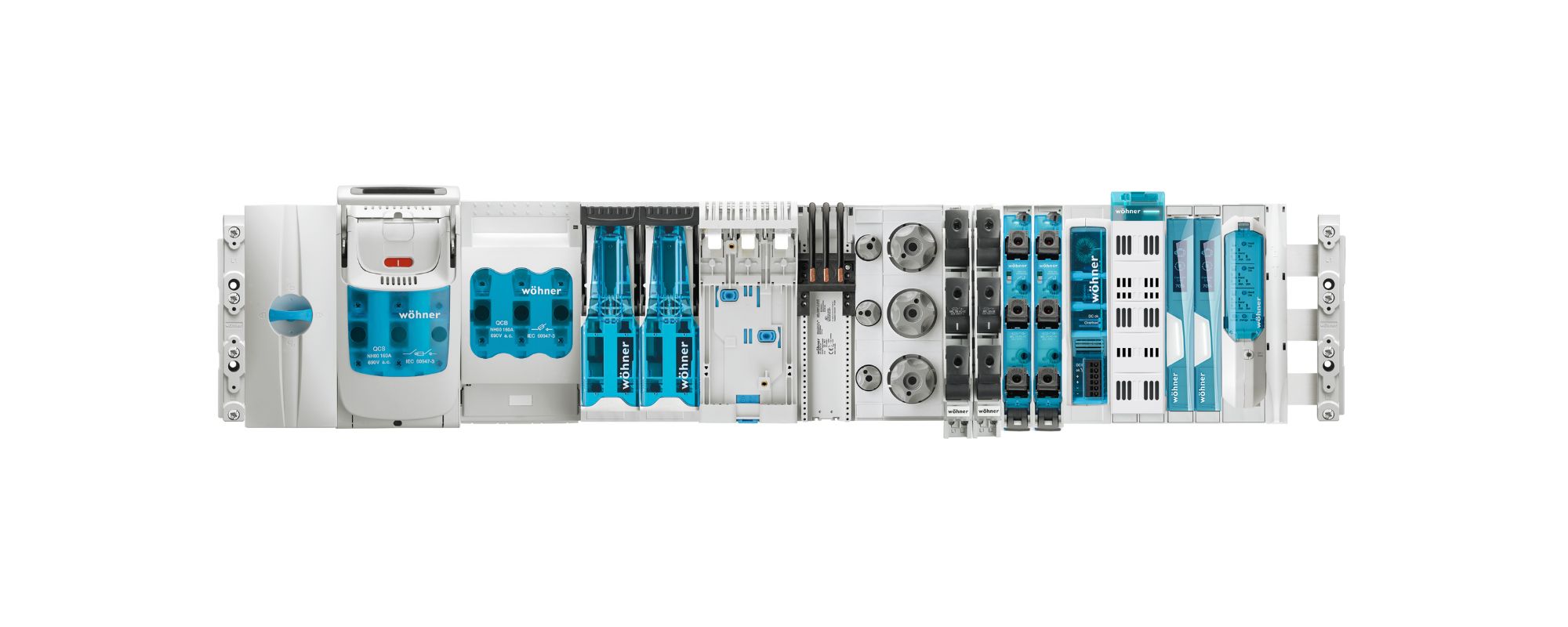

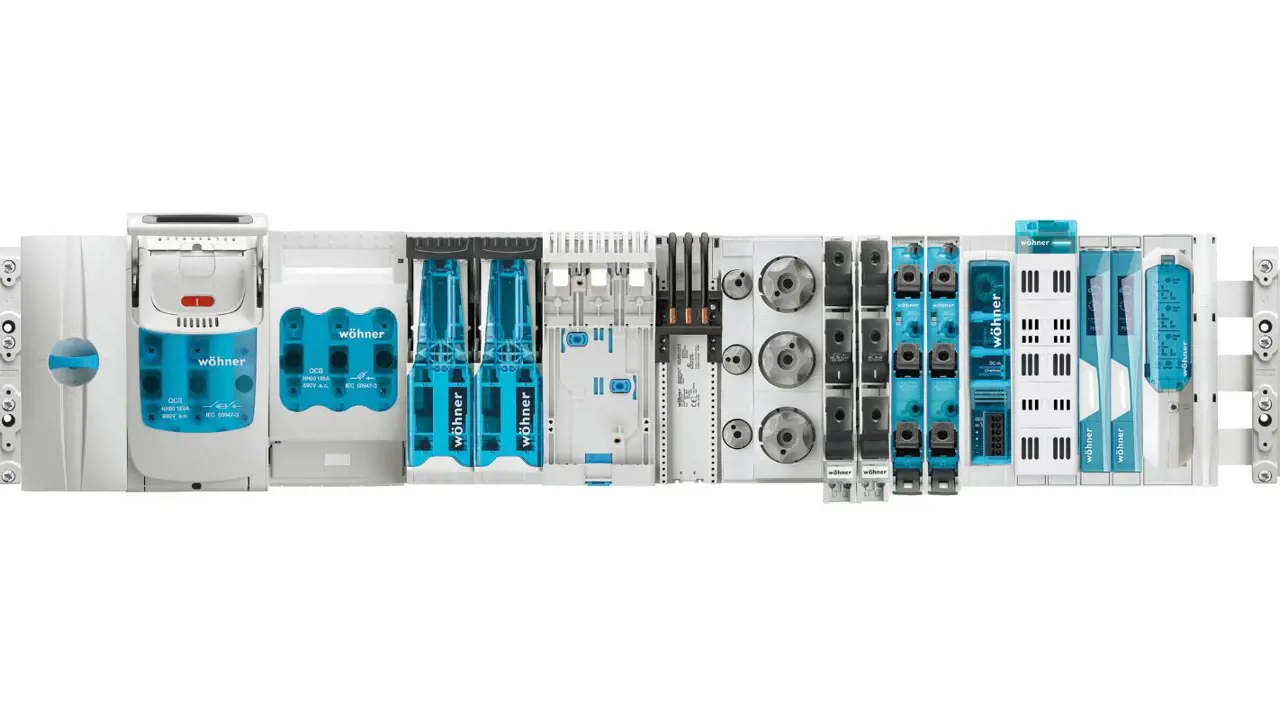

Power distribution
Wöhner power distribution
If uptime, reliability and clarity are important for your system application, Wöhner is a must-have concept.
Wöhner offers a complete, modern range of power distribution between 360-2500 A, whether for busbar systems or mounting plates, and is an optimal application solution.
Power distribution with Wöhner is complete in terms of installation speed, overview, space requirements and wiring.

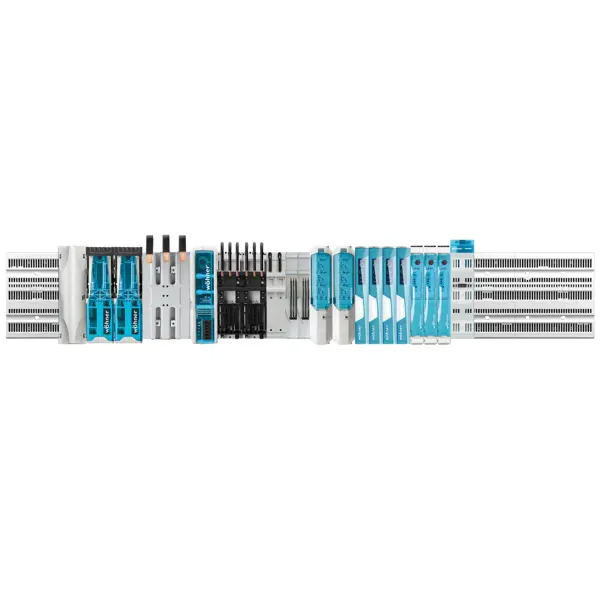

CrossBoard System®
With CrossBoard®, Wöhner has created a completely new system that combines the benefits of a high-performance busbar system with the traditional wiring on a DIN rail.
Benefits:
- Touch-proof busbar system
- High security, space efficient and stylish design
- Easy and quick installation without tools
- UL approved
In addition to the previous widths of 225 mm and 405 mm, CrossBoard® is now also available in seven other widths to match common cabinet widths.
With its standard interface and new versions optimized for common cabinet widths, CrossBoard® is the compact, out-of-the-box power distribution system for future control technology.

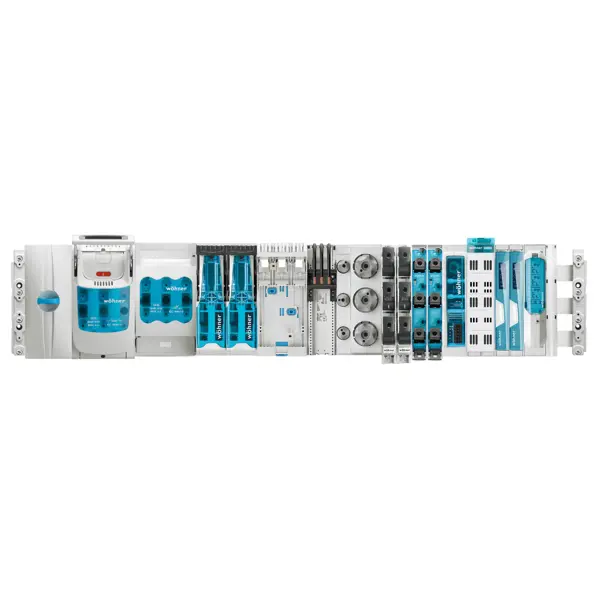

System 30Compact
Benefits:
- Compact busbar system up to 360 A
- Installation height of only 160 mm
- Optional 3-pole or 5-pole system
- Quick and easy installation of adapters
- UL approved

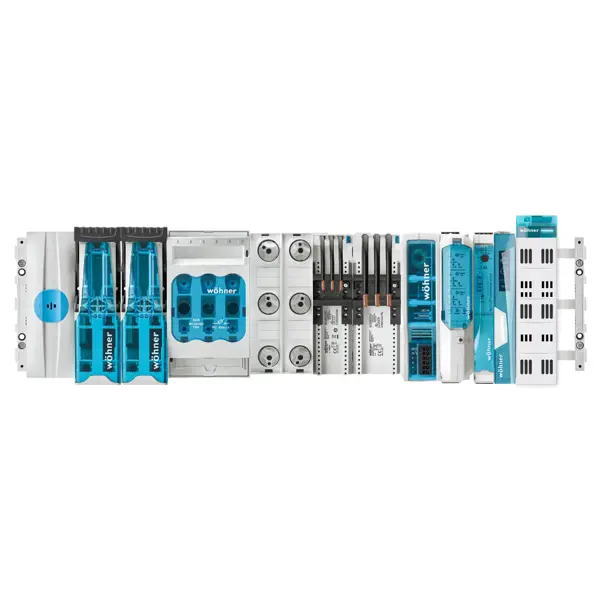

System 60Classic
Benefits:
- Busbar system up to 2500 A
- Touch-safe, space-saving and simple design
- Compatible with a wide range of CU busbars
- Wide range of adapters for switchboard components
- Wide range of fuse holders/switches for NH & UL approved fuse equipment
- UL approved

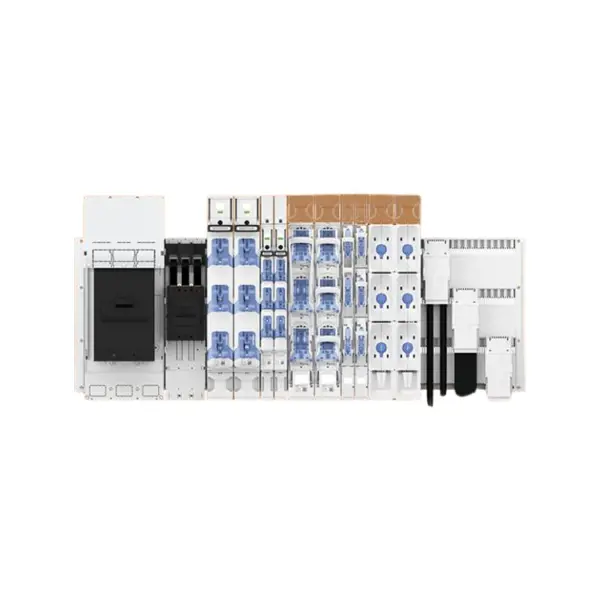

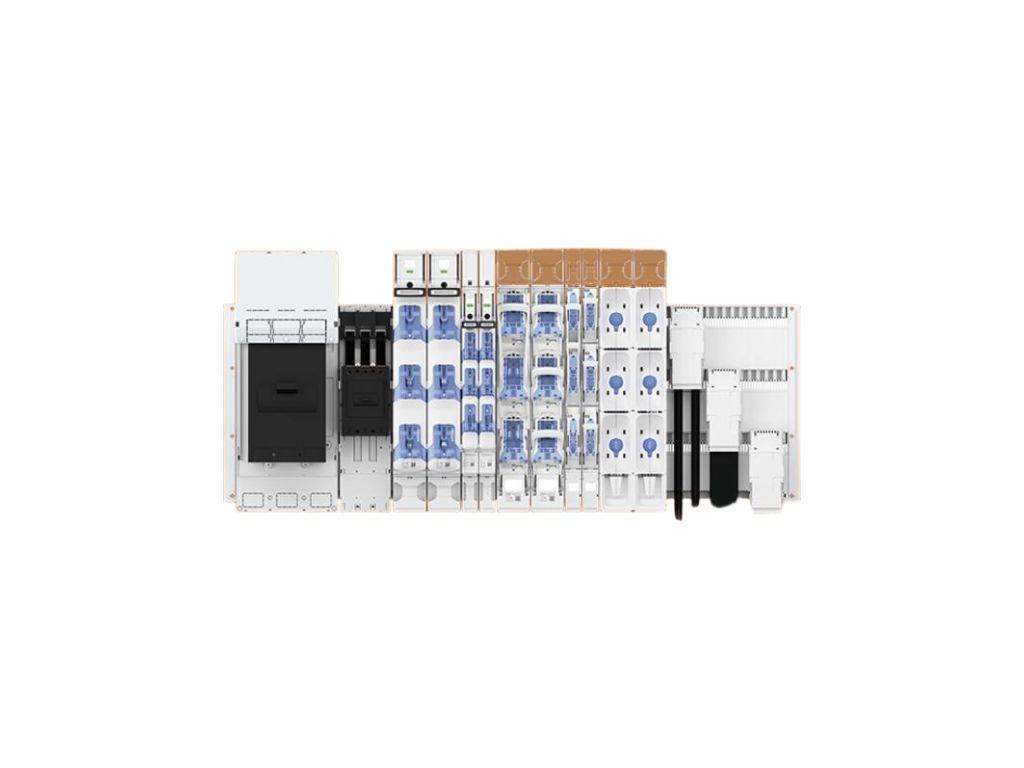

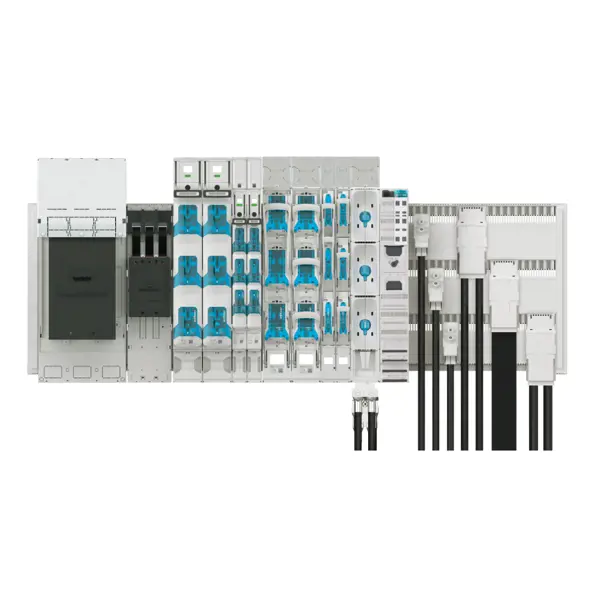

System 185Power
Benefits:
- New, space-saving solution for proven technology
- Complete protection of the system against accidental contact is possible
- Comfortable and secure mounting of components
- Different technical solutions possible on the same system
- Adapters for circuit breakers up to 1600 A

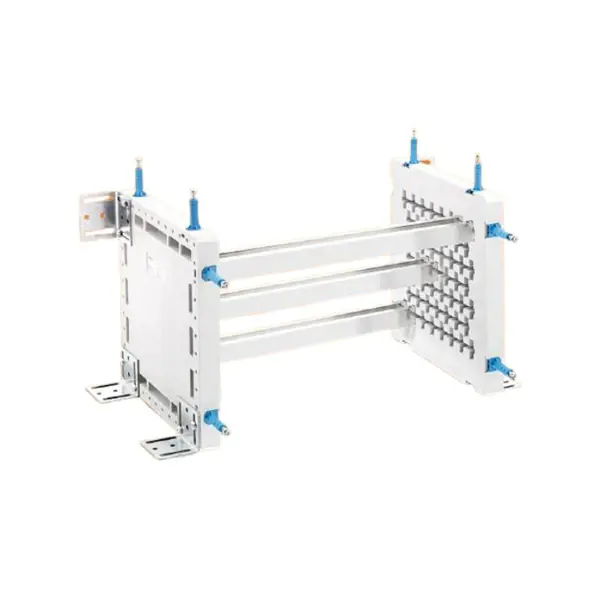

Center rail system
Advantages of the Wöhner Center Feed Unit:
- Clear design
- Easy, drill-free installation
- Customized solutions thanks to a wide range of incoming mounting options
Measurement technology
- Digital measuring technique for a wide range of applications and requirements
- Equipped with basic software
- More features can be expanded with feature upgrades

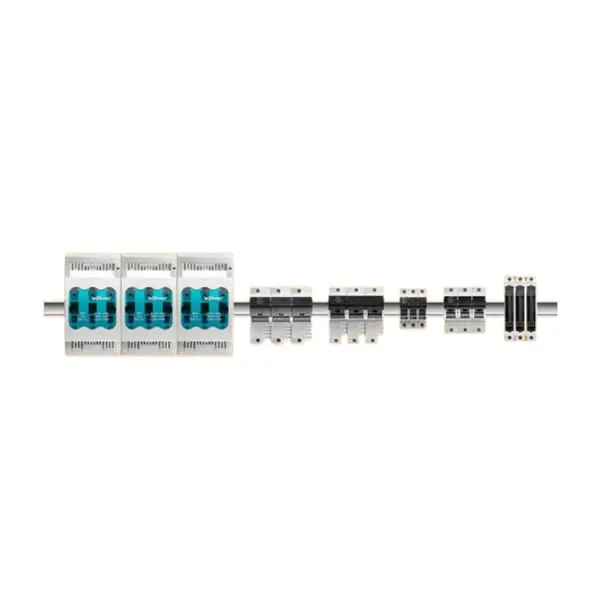

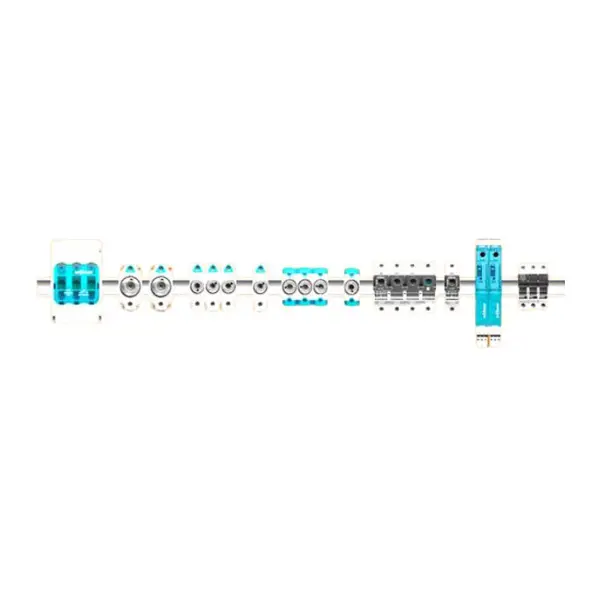

Fuse components
- Comprehensive range of panel components
- Mounting on backplate or DIN rail
Switches
- Motor starters with high breaking capacity and long lifetime
- Switches for safe switching

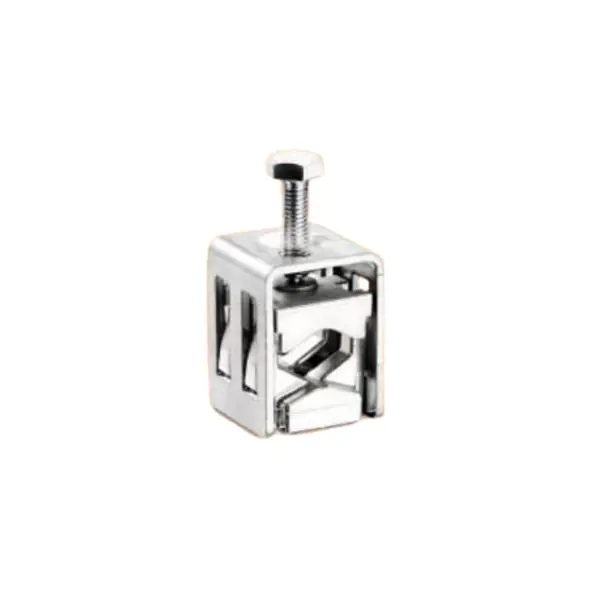

Accessories
Check out Wöhnner's impressive range of accessories that complement the product range and enhance your solution.
