Enclosures and enclosures

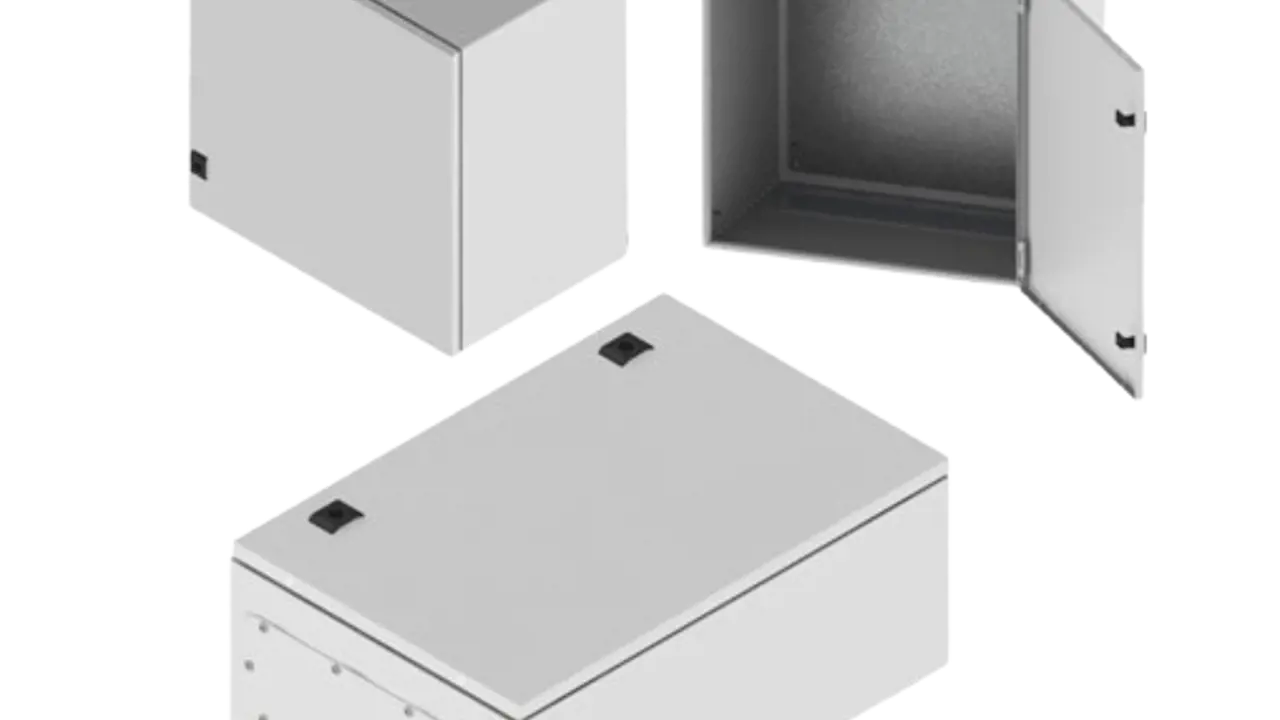

Junction box RAL 7035
Junction boxes without flanges.
Made of 1.0 mm thick steel plate painted in RAL 7035.
Door or hinged lid, painted in RAL 7035, equipped with a molded sealing strip.
Mechanical resistance according to IEC EN 62208: IK10. Flangeless enclosure, IP66, meets NEMA 4 standard.
.
See the product hereJunction box stainless steel AISI 305
Flangeless IP66 enclosure that meets the NEMA 4X standard.
Stainless steel construction with a thickness of 1.2 mm, AISI 304.
Hinged door or lid with molded gasket.
Mechanical impact resistance according to IEC EN 62208: IK10.
Wall cabinets RAL 7035
CE enclosures guided in steel plate with a thickness of 1.5 mm, painted in RAL 7035.
Mounting plate in galvanized steel with a thickness of 2.0 mm.
Door with locking mechanism, painted in RAL 7035, provided with a cast seal. Cable entry plate is located at the bottom of the enclosure.
Degree of protection IP66, meets NEMA 4. Impact resistance according to IEC EN 62208: IK10.
Wall cabinets stainless steel AISI 304
CE series enclosures, degree of protection IP66, meets the NEMA 4X standard. Made of sheet steel with a thickness of 1.2 mm.
The mounting plate is made of galvanized sheet steel with a thickness of 2.0 mm.
The door is equipped with a molded sealing strip. Impact resistance according to IEC EN 62208: IK10
Wall cabinets RAL 7035 with glass door glass door.
CE enclosures with glass door. Made of 1.5 mm thick steel plate painted in RAL 7035. Mounting plate in galvanized steel with a thickness of 2.0 mm.
Door with locking mechanism, painted in RAL 7035, equipped with a molded sealing strip. The door cut-out is protected with 4 mm thick safety glass. Cable entry plate is located at the bottom of the enclosure.
Impact resistance according to IEC EN 62208: IK09. Degree of protection IP66. Drawings can be downloaded from the CADENAS portal.
Wall cabinets stainless steel AISI 304 with glass door
CE series of enclosures, degree of protection IP66.
Made of sheet steel with a thickness of 1.2 mm.
The cable entry plate is made of a galvanized steel plate with a thickness of 2.0 mm.
The door is equipped with a molded sealing strip.
Impact resistance according to IEC 62208: IK10.
